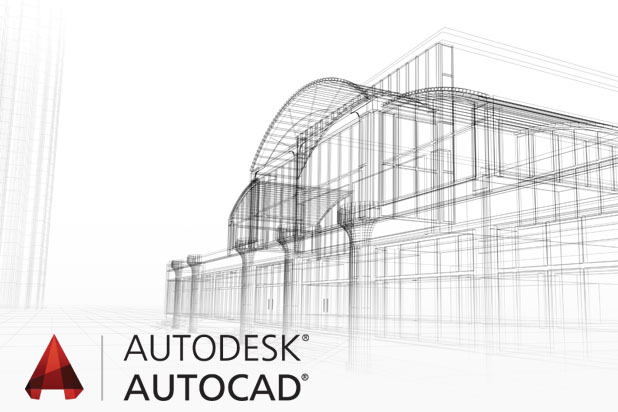

When designing our bespoke buildings we use AutoCAD software.  It is a software application for computer-aided design (CAD) and drafting in both 2D and 3D.  AutoCAD is used to produce accurate and detailed drawings for fabrication.

Where necessary the steps in the design of portals, are given below:

a) Determine possible loading conditions.

b) Compute the factored design load combination(s).

c) Estimate the plastic moment ratios of frame members.

d) Analyse the frame for each loading condition and calculate the maximum required

plastic moment capacity, Mp

e) Select the section, and

f) Check the design for other secondary modes of failure (IS: 800-1984).

The design commences with determination of possible loading conditions, in which

decisions such as, whether to treat the distributed loads as such or to consider them as

equivalent concentrated loads, are to be made.

In step (b), the loads determined in (a) are multiplied by the appropriate load factors to

assure the needed margin of safety.  This load factor is selected in such a way that the real factor of safety for any structure is at least as great as that decided upon by the designer.


The step (c) is to make an assumption regarding the ratio of the plastic moment capacities of the column and rafter, the frame members.


(i) Determine the absolute plastic moment value for separate loading conditions.

(Assume that all joints are fixed against rotation, but the frame is free to sway).  For

beams, solve the beam mechanism equation and for columns, solve the panel (sway)

mechanism equation.  These are done for all loading combinations. The moments  thus

obtained are the absolute minimum plastic moment values. The actual section moment

will be greater than or at least equal to these values.

(ii) Now select plastic moment ratios using the following guidelines.

In the step (d) each loading condition is analysed by a plastic analysis method for arriving at the minimum required Mp.  Based on this moment, select the appropriate sections in step (e).  The step (f) is to check the design according to secondary design considerations  discussed in the following sections (IS: 800-1984).

Design

Design

The 'simple plastic theory' neglects the effects of axial force, shear and buckling on the

member strength.  So checks must be carried out for the following factors.

a) Reductions in the plastic moment due to the effect of axial force and shear force.

b) Instability due to local buckling, lateral buckling and column buckling.

c) Brittle fracture.

d) Deflection at service loads.

In addition, proper design of connections is needed in order that the plastic moments can be developed at the plastic hinge location

BUILDING DESIGN

SECONDARY DESIGN CONSIDERATIONS
